LifeCycle

LifeCycle

For an application, the applicant may submit many sequences before the application is complete. The initial sequence should be self-contained, meaning it includes all documents and does not reference other sequences. Following the initial submission, the applicant can submit incremental updates such as amendments and variations. Some documents are submitted, some are modified and some others are replaced or deleted. In order to record the entire process of the application, the life cycle of the documents needs to be managed for review.

• Lifecycle Icon Quick Reference
  Submitted documents can be revised through the use of Lifecycle Operations. Lifecycle operations and status of documents are indicated with the icons listed below.



• Lifecycle for file

The life cycle operation icons are displayed before file.

• View details of lifecycle

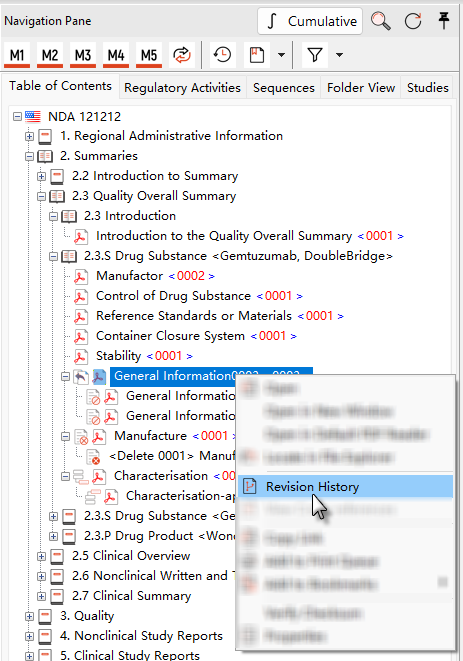

To view the details  of a document, right-click on the document which marked with lifecycle icon and select Revision History.

The Revisions and Lifecycle Status window pops up,you can see the details of the lifecycle.

• Cumulative View and Current View

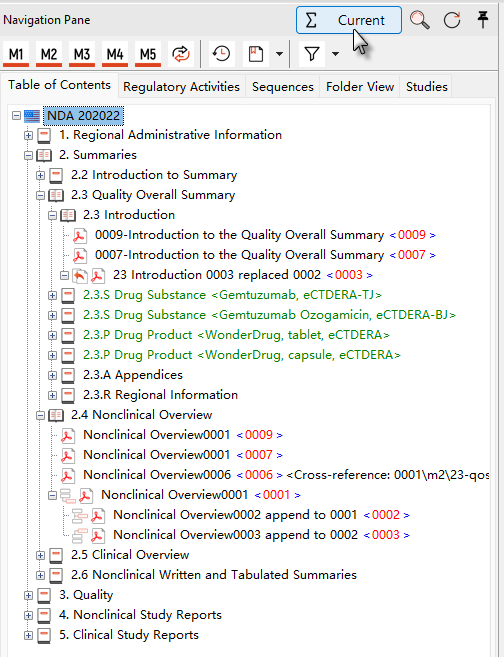

 The Current View shows only current files. Replaced or deleted leafs are hidden.

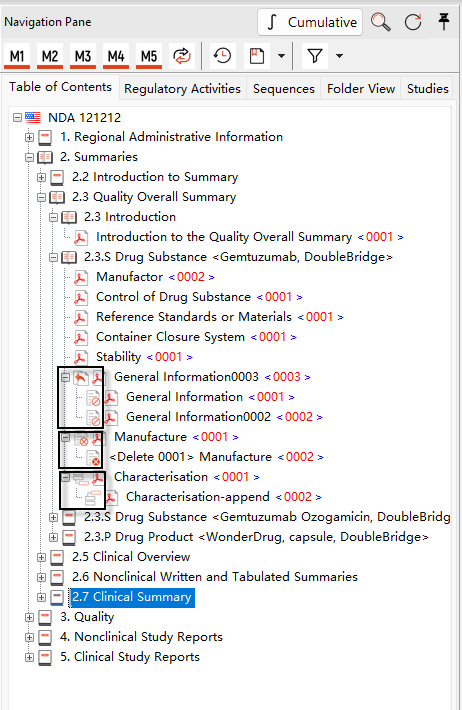

 The Cumulative View  shows all submitted files, including replaced or deleted leafs and/or deleted operations.

Current view and Cumulative view can be easily switched.

 To switch between Current View and Cumulative View: click button / from quick-tools bar.

Or

Right-click top node and select Switch to Cumulative View or Switch to Current View.

Or

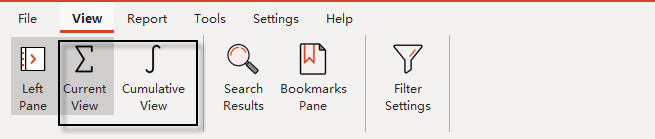

Go to the Ribbon pane of View menu and select Current View or Cumulative View.
